Gasket Material from AS&P

PTFE Gasket / Non-Asbestos Gasket / Flexible Graphite Gasket / Mica Therm Gasket

Order Now!

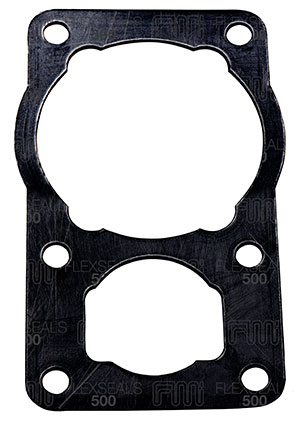

FLEXSEALS 500 DETAILS

FLEXSEALS 500
FLEXSEALS
500
CompositionCarbon fibres and high quality NBR binder

Density DIN 28090-2 (g/cm^3)1.6 - 1.9

Max Working Temperature Continual (250°C) 482° F

Max Working Temperature Peak (450°C) 842° F

Max operating pressure (10 Mpa) 1450 PSI

Leakage rate 3535-6 (mg*s-1*m-1)0,05

Residual Stress* 16h/175 °C
Din 52913 (MPa)
32

Compressibility ASTM F 36-J (%)5 - 15

Recovery ASTM F 36-J (%) min.50

ASTM OIL -IRM 903
5h/150 °C max(%)
ASTM F 146
3

ASTM FUEL B
5h/23 °C max(%)
ASTM F 146
5

Availability
Sheets size (mm)
Thickness (mm)
60" x 60"
1.500x3.000
0,5 to 5,0

Tollerances
Sheets size (mm)
Thickness (%)

+/- 50
+/- 10


Other Compressed Fiber Gaskets
