Gasket Material from AS&P

PTFE Gasket / Non-Asbestos Gasket / Flexible Graphite Gasket / Mica Therm Gasket

Order Now!

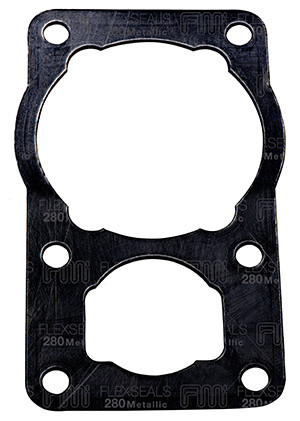

FLEXSEALS 280 METALLIC DETAILS

FLEXSEALS 280 METALLIC
FLEXSEALS
280 Metallic
CompositionOrganic fibres with NBR binder

Density DIN 28090-2 (g/cm^3)1.9 - 2.2

Max Working Temperature Continual (250°C) 482° F

Max Working Temperature Peak (400°C) 752° F

Max operating pressure (Mpa)12

Leakage rate 3535-6 (mg*s-1*m-1)0,08

Residual Stress* 16h/175 °C
Din 52913 (MPa)
32

Compressibility ASTM F 36-J (%)5 - 15

Recovery ASTM F 36-J (%) min.50
ASTM OIL -IRM 903
5h/150 °C max(%)
ASTM F 146
3

ASTM FUEL B
5h/23 °C max(%)
ASTM F 146
5

Availability
Sheets size (mm)
Thickness (mm)
60" x 60"
1.500x3.000
1,0 to 5,0

Tollerances
Sheets size (mm)
Thickness (%)
+/- 50
+/- 10


Other Compressed Fiber Gaskets
