FLEXSEALS 280 DETAILS

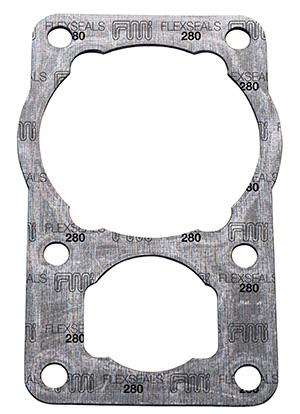

FLEXSEALS 280
FLEXSEALS
280
CompositionOrganic fibres with NBR binder

Density DIN 28090-2 (g/cm^3)1.7 - 2.0

Max Working Temperature Continual (250 C) 482°( F)

Max Working Temperature Peak (400C) 752°( F)

Max operating pressure (10 Mpa) 1450 PSI

Leakage rate 3535-6 (mg*s-1*m-1)0,06

Residual Stress* 16h/175 C
Din 52913 (MPa)
30

Compressibility ASTM F 36-J (%)5 - 15

Recovery ASTM F 36-J (%) min.50

ASTM OIL -IRM 903
5h/150 C max(%)
ASTM F 146
3

ASTM FUEL B
5h/23 C max(%)
ASTM F 146
5

Availability
Sheets size (mm)
Thickness (mm)
60" x 60"
1.500x3.000
0,5 to 5,0

Tollerances
Sheets size (mm)
Thickness (%)
+/- 50
+/- 10
