Gasket Material from AS&P

PTFE Gasket / Non-Asbestos Gasket / Flexible Graphite Gasket / Mica Therm Gasket

Order Now!

FLEXIGRAF MULTIFLEX HPT DETAILS

FLEXIGRAF MULTIFLEX HPT

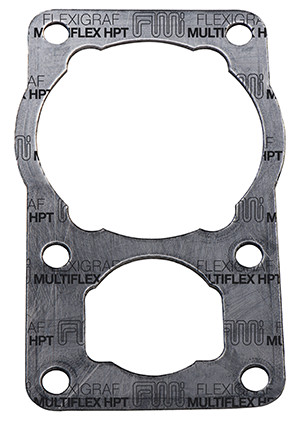

FLEXIGRAF ® MULTIFLEX HPT
CompositionGraphite laminate reinforced with a tanged stainless steel multilayers core


Density DIN 28090-2 (g/cm³)1,4 - 1,6


Min/Max recommended Peak Temperature (°C)-200/+550


Max operating pressure (bar)350


Leakage DIN 3535-6 (mg*s-1*m-1)=0.1


Creep relaxation DIN 3535-6 (%)=5


Compressibility DIN 3535-6 (%)30 - 45


Recovery DIN 3535-6 (%)3 - 7


Availability

Sheets size (mm)
1.500x1.500
1.000x1.000
1.500x1.000


Thickness (mm)0,5 to 3


Tolerances
Sheets size (mm)
Thickness (%)
+/- 50
+/- 10


Other Expended Graphite Gaskets
