Gasket Material from AS&P

PTFE Gasket / Non-Asbestos Gasket / Flexible Graphite Gasket / Mica Therm Gasket

Order Now!

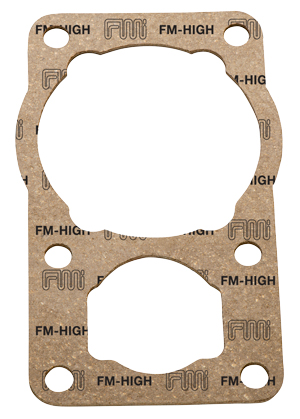

MICA FM High Gasket DETAILS

MICA FM High Gasket DETAILS
MICA ® FM_HIGH
CompositionExpanded Mica and biosoluble fiber bonded to a SS316L tanged core


Density ASTMF 1315 (g/cm3)1,6 - 1,9


Max recommended Temperature (°C)950


Max operating pressure (Bbar)200


Leakage DIN 3535-6 (mg*s-1*m-1)<0.1*


Creep relaxation DIN 3535-6 (%)<18


Compressibility DIN 3535-6 (%)>20


Recovery DIN 3535-6 (%)>2.2


Availability

Sheets size (mm)
1.500x1.500
1.000x1.000


Thickness (mm)1 to 3


Tollerances
Thickness (%)
Sheets size (mm)
+/- 50
+/- 10




Other MICA Gaskets

MICA S15 Gasket
